Heat Pump Cylinder Guide UK 2025Complete Expert Buyer's Guide & Comparison
Expert comparison of heat pump compatible hot water cylinders. Compare Heat Geek Super (6.0m² coil), Vaillant uniSTOR (5.2m²), and Viessmann Vitocell (4.5m²). Complete sizing guide, installation costs, and £7,500 BUS grant information for Hampshire & Wiltshire installations.
Why Standard Cylinders Fail with Heat Pumps
Understanding the physics: Why your existing cylinder won't work
Heat pumps operate at fundamentally different temperatures than gas boilers, creating a critical incompatibility with standard hot water cylinders. This isn't just about efficiency—standard cylinders simply cannot heat water properly with heat pumps.
Gas Boiler System
Heat Pump System
The Physics: Why Coil Size Matters
Heat transfer rate depends on three factors: temperature difference,surface area, and time. With heat pumps operating at 35-45°C (vs 60-80°C for gas), the temperature difference between the coil and stored water is cut in half.
Formula: Heat Transfer = Surface Area × Temperature Difference × Time
Gas boiler: 2.0m² × 50°C difference = Heats 200L in 40 minutes
Heat pump (standard cylinder): 2.0m² × 20°C difference = Heats 200L in 150+ minutes ❌
Heat pump (heat pump cylinder): 6.0m² × 20°C difference = Heats 200L in 70 minutes ✅
To compensate for the 50% reduction in temperature difference, heat pump cylinders use coils that are 2-3× larger (4.5m²-6.0m² vs 1.5m²-2.5m²). This increased surface area allows efficient heat transfer despite lower temperatures.
Real-World Impact of Using Wrong Cylinder
Top 3 Heat Pump Cylinders Compared
Expert analysis of the best heat pump compatible cylinders available in the UK market
| Feature | Heat Geek Super | Vaillant uniSTOR | Viessmann Vitocell |
|---|---|---|---|
| Coil Area | 6.0m² (A-Series) | 5.2m² | 4.5m² |
| Capacity Range | 150L - 500L | 150L - 800L | 150L - 500L |
| Warranty | 2 years + 25 years shell | 25 years shell | 2 years + 10 years shell |
| Manufacturer | Newark Cylinders (UK) | Vaillant Derby (UK) | Viessmann (Germany) |
| Best For | All heat pump types | Vaillant heat pumps | Viessmann systems |
| Typical Price (250L) | £1,400 - £1,800 | £1,200 - £1,600 | £1,100 - £1,500 |
| Stratification | Optimized design | Good | Good |

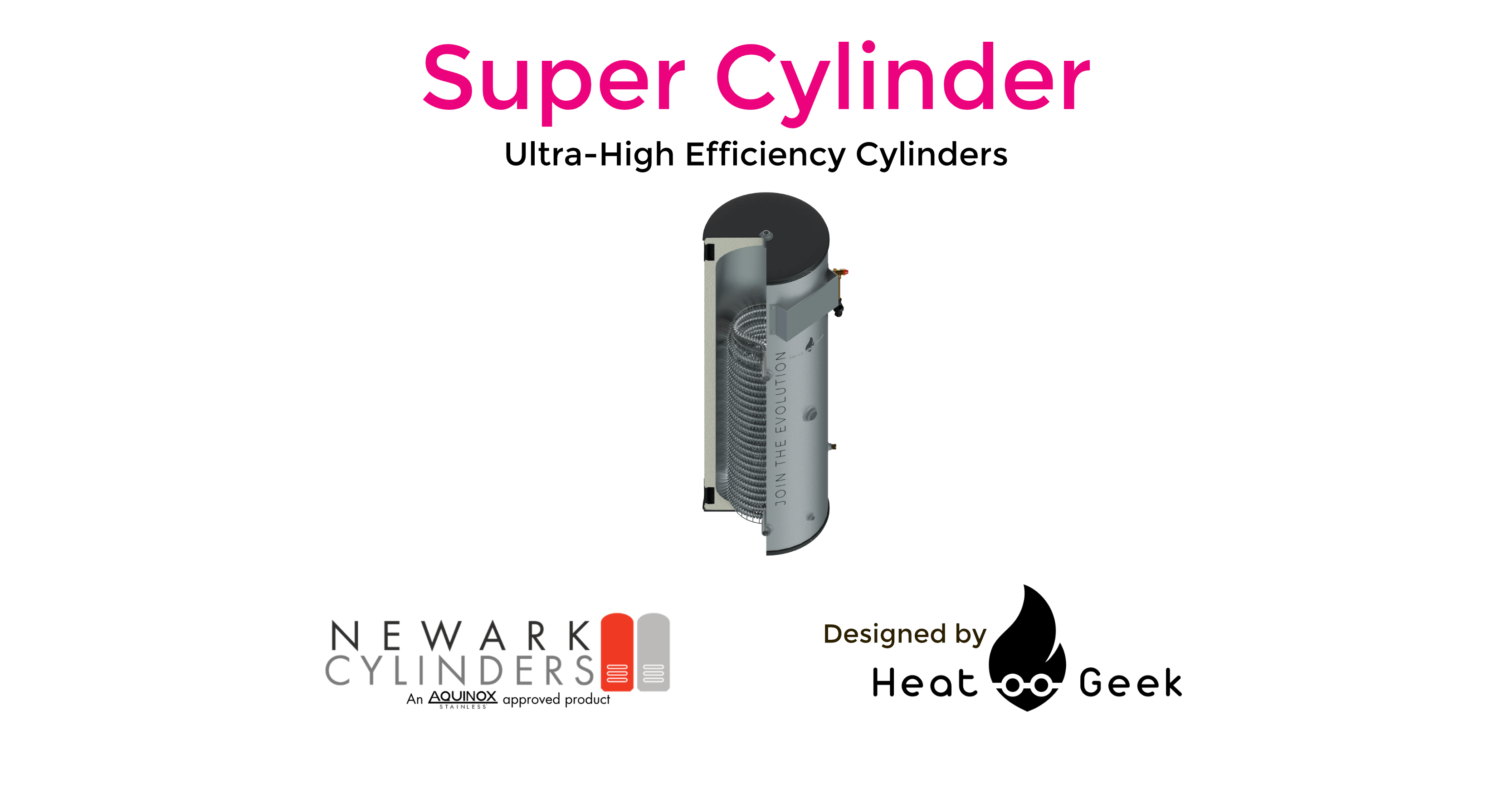

Heat Geek Super Cylinder
6.0m² coil - Maximum heat transfer for all heat pump types
Key Strengths
- 6.0m² coil area: 20% more surface area than competitors
- Optimized stratification: Hot water rises efficiently, cold sinks naturally
- A-Series tall models: Better temperature layering than short B-Series (4.0m²)
- Newark manufacturing: UK-made quality with stainless steel construction
- Universal compatibility: Works with ALL heat pump brands
Considerations
- Premium pricing: £200-300 more than alternatives
- Height requirements: A-Series models need good ceiling height (1800-2000mm)
- Availability: Specialist product, may need ordering
💡 Will's Expert Opinion
"The Heat Geek Super is my top recommendation for heat pump installations. The 6.0m² coil makes a noticeable difference in recovery time—customers consistently report faster reheats and hotter water compared to competitors. Yes, it costs more upfront, but that's £200-300 over 25+ years. Worth every penny for the performance gain."
Best for: New heat pump installations, large families (4+ people), properties with multiple bathrooms, or anyone wanting the absolute best performance. The A-Series tall models are particularly good for achieving excellent stratification.

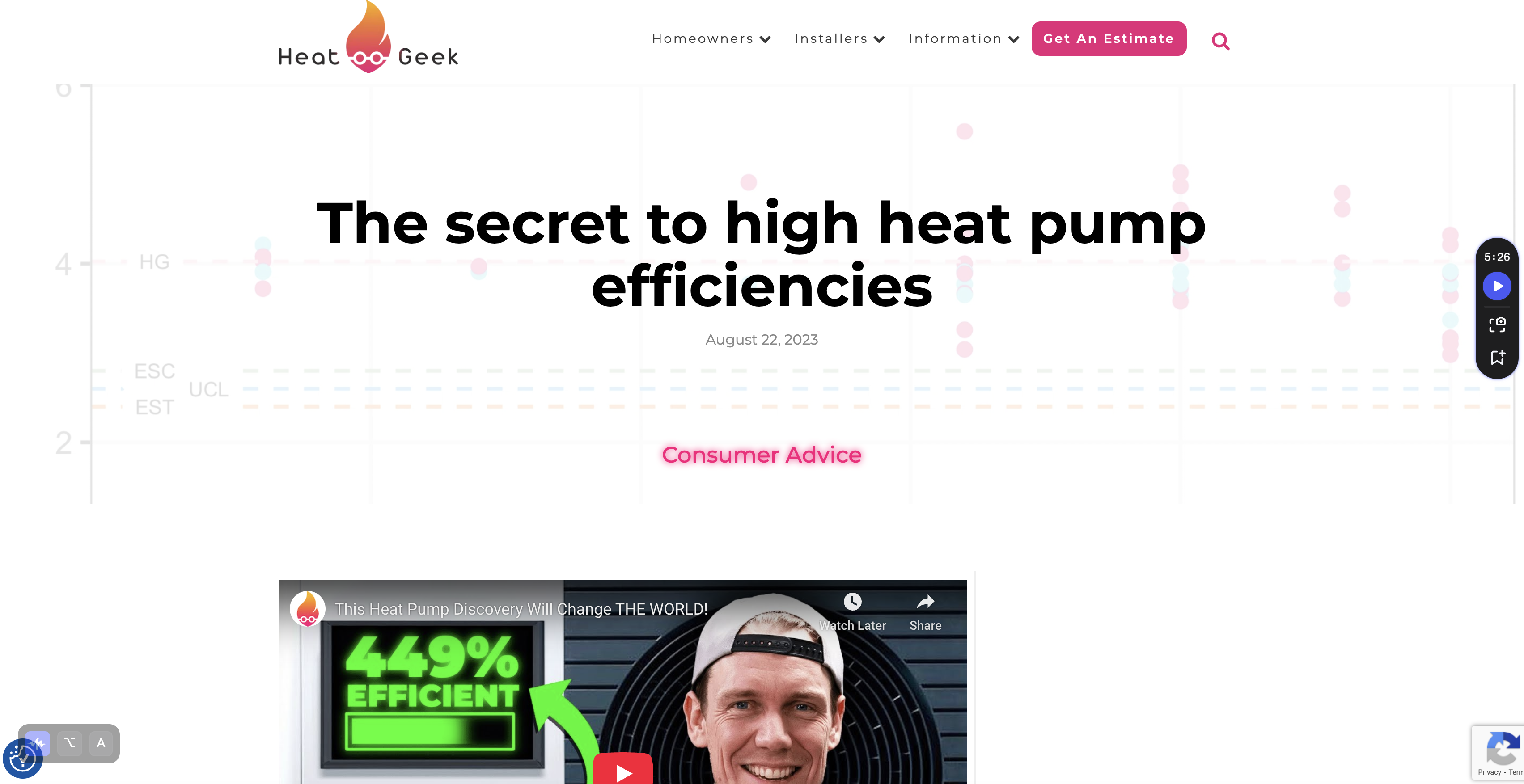

Heat Geek Heat Pump Resources
Click to learn more about heat pump efficiencies from Heat Geek
Heat Geek Expertise: Heat Geek are industry-leading heat pump specialists who manufacture the Super cylinder range. Their educational resources are excellent for understanding heat pump performance and cylinder requirements. We are independent installers experienced with Heat Geek Super cylinders across Hampshire.
Vaillant uniSTOR
5.2m² coil - Excellent performance with industry-leading 25-year warranty
Key Strengths
- 25-year shell warranty: Industry-leading confidence in quality
- 5.2m² coil: Only 13% smaller than Heat Geek, still excellent performance
- UK manufactured: £40m Derby facility opened 2025
- Wide capacity range: 150L to 800L options available
- Vaillant system integration: Perfect pairing with Vaillant heat pumps
Considerations
- Slightly smaller coil: 0.8m² less than Heat Geek Super
- 2-year parts warranty: Shell is 25 years, but parts only 2 years
- Brand premium: Vaillant name adds to cost vs independent manufacturers
💡 Will's Expert Opinion
"The Vaillant uniSTOR is the sweet spot for most customers. That 25-year warranty gives incredible peace of mind, and the 5.2m² coil performs brilliantly—you'd be hard-pressed to notice the difference from the 6.0m² Heat Geek in real-world use. If you're installing a Vaillant heat pump, this is the obvious choice for system compatibility."
Best for: Vaillant heat pump owners, customers prioritizing warranty length, mid-to-large families, anyone wanting proven Vaillant reliability. The 800L option is perfect for very large properties or commercial applications.

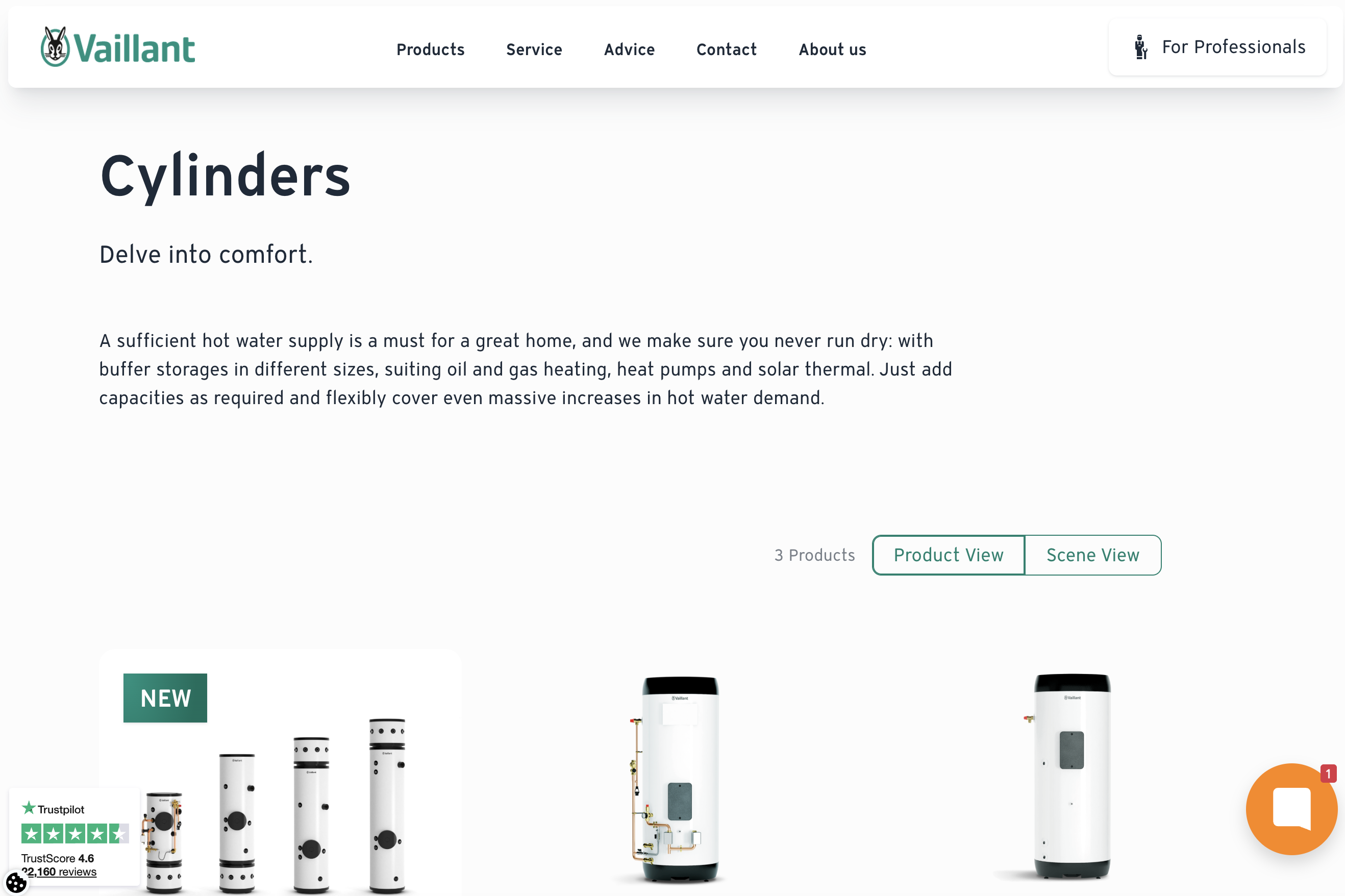

Vaillant Cylinder Range Overview
Click to explore the complete Vaillant cylinder range on their official website
Independent Installers: We are G3-certified independent installers specializing in Vaillant uniSTOR cylinders for heat pump installations across Hampshire & Wiltshire. Not affiliated with Vaillant, but extensively experienced with their product range.

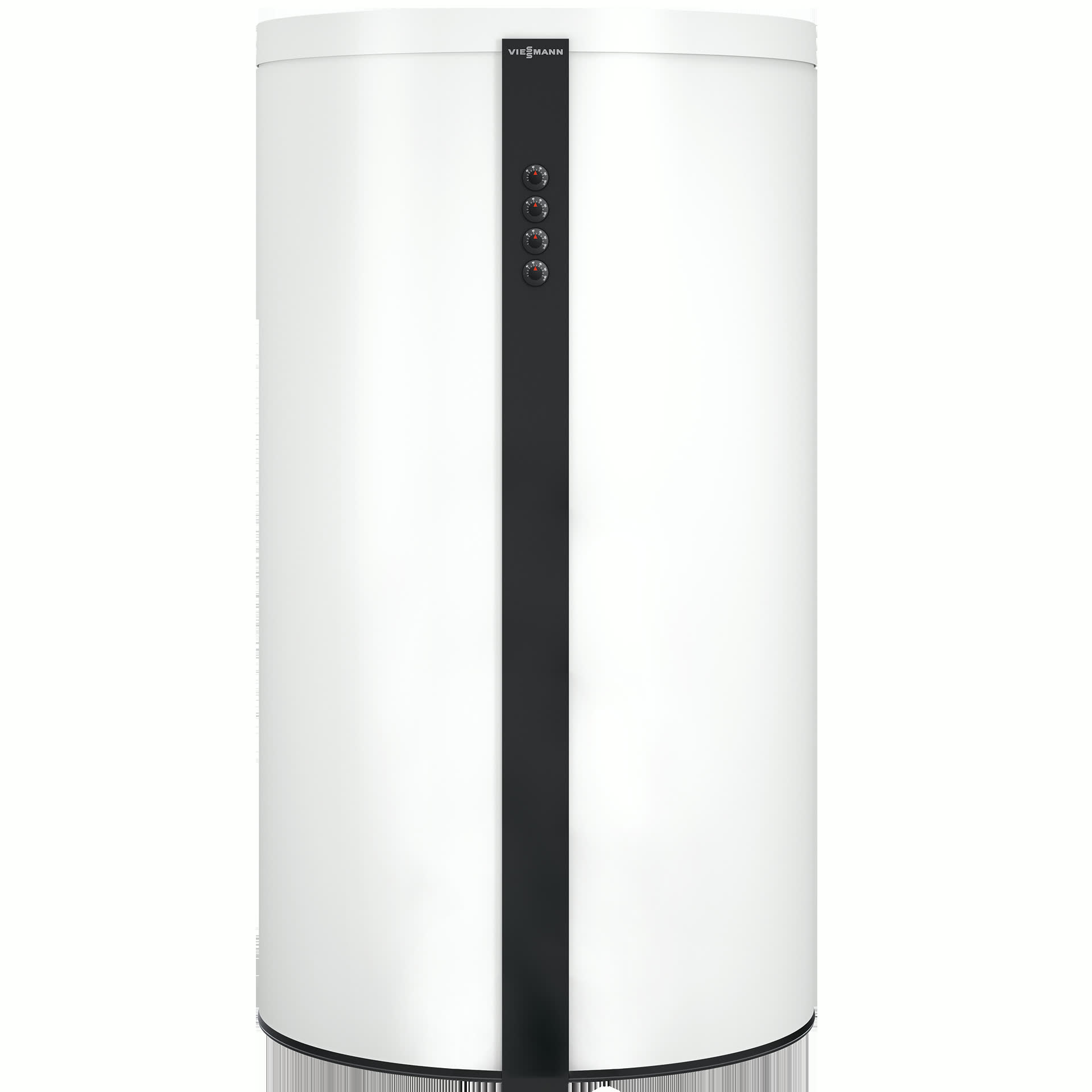

Viessmann Vitocell
4.5m² coil - German engineering excellence at competitive pricing
Key Strengths
- Best price point: £100-300 less than larger coil competitors
- German manufacturing: Viessmann's legendary build quality
- 4.5m² coil: Sufficient for most UK heat pump installations
- Viessmann system match: Perfect for Viessmann heat pumps
- Wide availability: Stocked by most plumbing merchants
Considerations
- Smaller coil: 25-33% less surface area than premium options
- Longer reheat times: 10-15 minutes slower than 6.0m² cylinders
- 10-year shell warranty: Shorter than Vaillant's 25 years
- Not ideal for large households: May struggle with high simultaneous demand
💡 Will's Expert Opinion
"The Viessmann Vitocell is a solid choice for budget-conscious customers or smaller households. While the 4.5m² coil is the minimum I'd recommend for heat pumps, it performs adequately for typical UK family usage (2-4 people). The German build quality is excellent, and you're saving £200-400 vs premium options."
Best for: Smaller households (2-3 people), budget-conscious projects, Viessmann heat pump owners, properties with single bathroom, anyone prioritizing German engineering at competitive prices. Not recommended for large families or homes with multiple bathrooms running simultaneously.

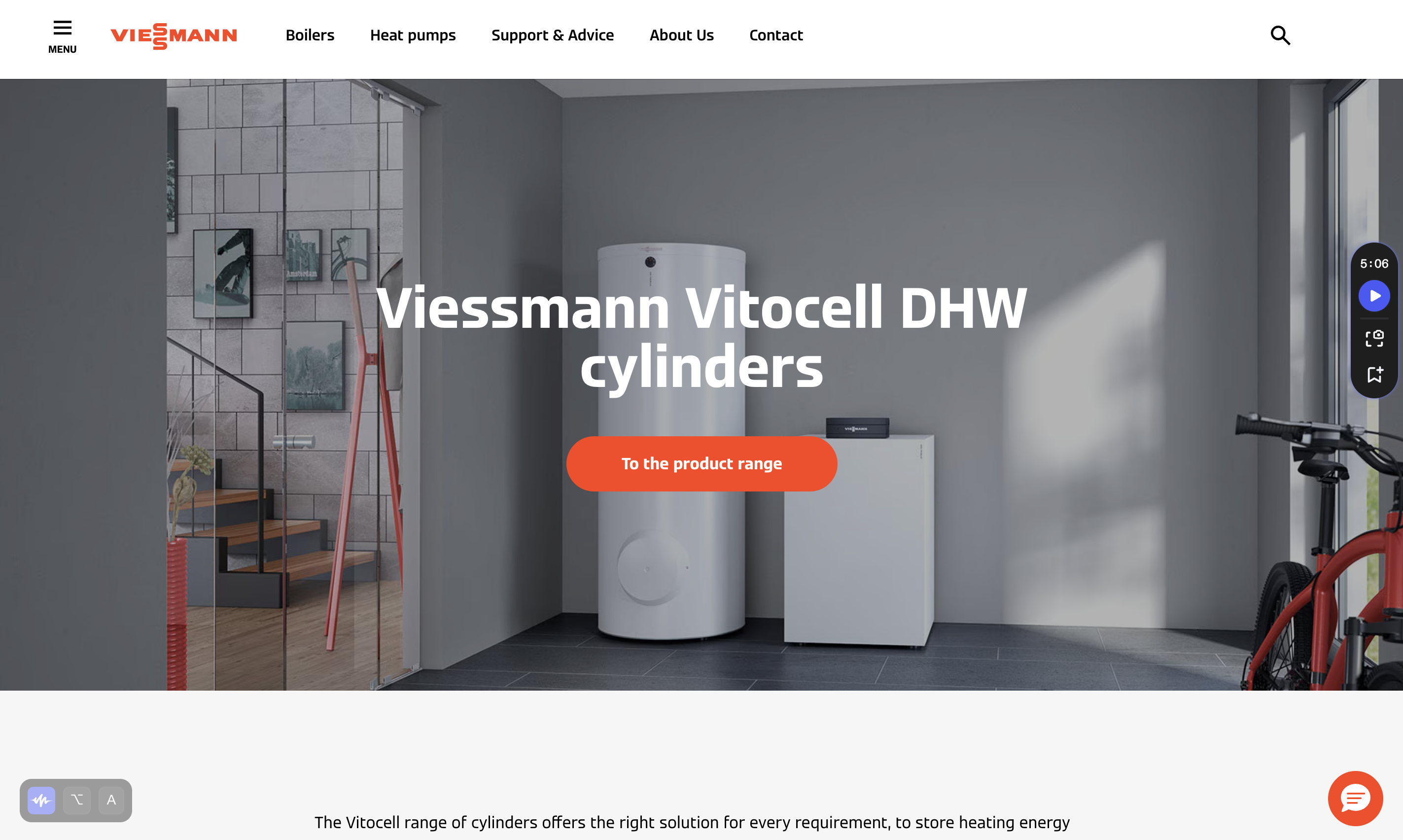

Viessmann Vitocell Range Overview
Click to explore the complete Viessmann Vitocell range on their official website
Independent Installers: We are G3-certified independent installers specializing in Viessmann Vitocell cylinders for heat pump installations across Hampshire & Wiltshire. Not affiliated with Viessmann, but extensively experienced with their product range.
🎯 Quick Decision Helper
Choose Heat Geek If:
- You want the best possible performance
- Large family (4+ people)
- Multiple bathrooms
- Any heat pump brand
Choose Vaillant If:
- You have a Vaillant heat pump
- 25-year warranty is important
- Medium-large family (3-5 people)
- Best balance of performance/price
Choose Viessmann If:
- Budget is a primary concern
- Smaller household (2-3 people)
- Single bathroom property
- Viessmann heat pump owner
Not Sure Which Heat Pump Cylinder You Need?
Get expert advice from Will Gaze - G3 certified engineer with 15+ years heat pump cylinder experience
Heat Pump Cylinder Sizing Guide
The golden rule: Add 50L to your standard cylinder calculation
Heat pump cylinders need to be larger than standard cylinders due to longer reheat times and lower flow temperatures. The industry rule is to add 50 liters to your standard sizing calculation, plus an additional 20% safety margin.
| Household Size | Daily Usage | Standard Cylinder | Heat Pump Cylinder |
|---|---|---|---|
| 1-2 people | 100-150L/day | 120-150L | 180-210L |
| 3-4 people | 150-250L/day | 200-250L | 250-300L ⭐ |
| 4-5 people | 250-350L/day | 250-300L | 300-400L |
| 6+ people | 350-500L/day | 350-400L | 450-500L |
⭐ Most common size: 250L-300L cylinders cover 70% of UK households
Add Extra Capacity If You Have:
- Multiple bathrooms: +20% for 2 bathrooms, +30% for 3+
- Morning rush usage: +30% if everyone showers 7-9am
- Regular baths: +50L for frequent large baths
- High-flow showers: +20% for 12+ L/min systems
Undersizing Consequences:
- Running out of hot water: Especially during morning rush
- Heat pump short-cycling: Reduces efficiency and lifespan
- Frequent immersion heater use: Defeats heat pump savings
- Family complaints: Cold showers = unhappy household
Heat Pump Cylinder Sizing Formula
Step 1: Calculate daily usage (60L per adult + 40L per child + shower/bath usage)
Step 2: Add 50L heat pump buffer
Step 3: Add 20% safety margin
Step 4: Add extra for multiple bathrooms/morning rush (see factors above)
Example: Family of 4 (2 adults, 2 children) with 2 bathrooms:
→ (2×60L + 2×40L) + 50L buffer = 250L
→ 250L × 1.2 safety margin = 300L
→ 300L × 1.2 (2 bathrooms) = 360L → Choose 400L cylinder
BUS Grant & Installation Costs
£7,500 government grant available for heat pump installations
Boiler Upgrade Scheme (BUS) Grant 2025/2026
- Installer-led application: Your MCS-certified installer handles all paperwork
- Cylinder included: Grant covers heat pump system including cylinder upgrade
- 120-day deadline: Installation must complete within 120 days of application
- England & Wales: Available to homeowners replacing fossil fuel systems
Heat Pump Cylinder Installation Costs
| Component | Standard Install | Complex Install |
|---|---|---|
| Heat Pump Cylinder (250L) | £1,200 - £1,600 | £1,400 - £1,800 |
| Labour (removal + installation) | £600 - £800 | £900 - £1,200 |
| Materials & Pipework | £300 - £400 | £500 - £700 |
| G3 Certification & Notification | £85 | £85 |
| Old Cylinder Removal | £50 | £100 - £150 |
| Total Before Grant | £2,235 - £2,935 | £2,885 - £3,935 |
| With £7,500 BUS Grant (system total) | Cylinder effectively: £500 - £1,200 | Cylinder effectively: £800 - £1,500 |
BUS Grant Eligibility Checklist
✅ You CAN apply if:
- You own your property (England or Wales)
- Replacing gas, oil, or electric heating
- Property has valid EPC (any rating)
- Using MCS-certified installer
- Installing heat pump cylinder as part of system
❌ You CANNOT apply if:
- You're a tenant (landlord must apply)
- Property in Scotland or Northern Ireland
- Already have an existing heat pump
- Newbuild property (different schemes apply)
- Self-installing (must use MCS installer)
Heat Pump Brand Compatibility Guide
Matching the right cylinder to your heat pump brand
While heat pump cylinders are generally universal, certain brands work optimally with specific manufacturersdue to system integration, control compatibility, and warranty considerations. Choose the right pairing for maximum efficiency and peace of mind.
| Heat Pump Brand | Best Cylinder Match | Alternative Option | Why This Match? |
|---|---|---|---|
| Vaillant aroCOLLECT | Vaillant uniSTOR (5.2m²) | Heat Geek Super | Perfect system integration, 25-year warranty |
| Viessmann Vitocal | Viessmann Vitocell (4.5m²) | Vaillant uniSTOR | German engineering match, system warranty |
| Mitsubishi Ecodan | Heat Geek Super (6.0m²) | Vaillant uniSTOR | Maximum coil area for best Ecodan performance |
| Daikin Altherma | Heat Geek Super (6.0m²) | Vaillant uniSTOR | Larger coil handles Daikin's variable flow temps |
| Samsung EHS | Any 4.5m²+ cylinder | Heat Geek/Vaillant | Good compatibility with all heat pump cylinders |
| Grant Aerona | Vaillant uniSTOR (5.2m²) | Heat Geek Super | Reliable pairing, good coil size match |
| Universal (Any Brand) | Heat Geek Super (6.0m²) | Vaillant uniSTOR | Works with ALL heat pump brands |
What Makes a Good Match?
- Flow/return temperatures: Coil sized for heat pump's operating temps (35-55°C)
- Control integration: Cylinder thermostat communicates with heat pump controller
- System warranty: Manufacturer approves cylinder for warranty coverage
- Enhanced insulation: Minimizes heat loss in low-temperature systems
Compatibility Red Flags
- Coil too small: Under 4.5m² won't work efficiently with heat pumps
- No legionella protection: Low temps (35-45°C) need monthly 60°C cycles
- Standard cylinder: Designed for gas boilers (60-80°C), not heat pumps
- Warranty conflicts: Using non-approved cylinder voids heat pump warranty
Energy Savings Calculator
Real-world savings: Heat pump cylinder vs gas boiler
Gas Boiler + Standard Cylinder
Heat Pump + Heat Pump Cylinder
Your Savings Over Time
Payback Period Calculation
Ready to Switch to a Heat Pump Cylinder?
Get expert advice on cylinder selection, BUS grant application, and professional G3-certified installation
Professional Installation Process
What to expect during your heat pump cylinder installation
Pre-Installation Survey
- Heat pump compatibility check: Verify flow/return temperatures (35-55°C)
- Cylinder location assessment: Height clearance, access, floor strength
- Pipework route planning: Connection to heat pump system
- Size confirmation: Daily usage calculation + 50L heat pump buffer
Main Installation (6-8 hours)
- System shutdown: Drain old cylinder and heat pump system
- Old cylinder removal: Disconnect pipework, remove from property
- Position new cylinder: Heat pump cylinder (4.5m²-6.0m² coil) in place
- Connect to heat pump: Flow/return pipes, controls integration
- Safety devices: Pressure relief valve, expansion vessel, tundish
- Hot/cold water connections: Mains supply, distribution pipework
- Immersion heater: Backup heating element with thermostat
Commissioning & Testing (2-4 hours)
- System refill: Fill and pressure test entire system
- Heat pump integration: Test flow temperatures (35-55°C)
- Legionella cycle setup: Program monthly 60°C sterilization
- Control testing: Thermostat, timers, heat pump communication
- Safety checks: PRV operation, discharge pipe, expansion vessel
- Building Regulations notification: G3 compliance (£85)
- Customer handover: System operation training
Installation Cost Summary
Standard Installation
With £7,500 BUS Grant
Common Mistakes to Avoid
Learn from others' expensive errors
Using Standard Cylinder with Heat Pump
The Problem: Standard cylinders have small coils (1.5m²-2.5m²) designed for high-temperature gas boilers (60-80°C). They simply cannot transfer heat efficiently at heat pump temperatures (35-45°C).
- • Reheat times: 3-4 hours (vs 60-90 mins with proper cylinder)
- • Lukewarm water during high-demand periods
- • 40-50% efficiency loss
- • Frequent immersion heater use (expensive)
Replace with heat pump cylinder featuring 4.5m²-6.0m² coil. Typical cost: £2,200-3,500 installed (or £500-2,000 with BUS grant allocation).
Undersizing the Cylinder (Forgetting the 50L Rule)
The Problem: Heat pumps take longer to reheat cylinders (60-90 mins vs 30-45 mins for gas). Using the same cylinder size as a gas system leads to running out of hot water.
Family of 4 switched from gas to heat pump but kept their 200L cylinder. Within weeks, they were running out of hot water every morning. The heat pump couldn't keep up with usage + short-cycled constantly.
Golden Rule: Add 50L to standard sizing + 20% safety margin. Family of 4 should choose 250-300L (not 200L). Prevents running out and reduces short-cycling.
Choosing Smallest Coil to Save Money
The Problem: Selecting a 4.5m² Viessmann cylinder to save £200-300 when your heat pump and usage patterns actually need 5.2m² or 6.0m² for optimal performance.
Smaller coil = 10-15 minutes longer reheat times = more frequent immersion heater use = £50-100/year extra electricity. Over 25 years, you lose £1,250-2,500 to save £300 upfront. False economy.
Invest in 5.2m² (Vaillant) or 6.0m² (Heat Geek) for families 3+, multiple bathrooms, or high usage. The upfront premium pays for itself in 3-5 years through better efficiency and reduced backup heating.
Skipping Legionella Protection
The Problem: Heat pumps operate at 35-45°C—perfect breeding ground for Legionella bacteria (grows best at 20-45°C). Without monthly high-temperature cycles, you're risking serious illness.
Legionella causes Legionnaires' disease—a severe pneumonia with 10% fatality rate. It's spread through water droplets (showers, taps). Heat pump systems MUST have legionella protection built in.
All heat pump cylinders include immersion heater for monthly 60°C legionella cycles (kills bacteria in 2 hours). Ensure installer programs this correctly—typically runs overnight once per month.
Using Non-MCS Installer (Losing £7,500 Grant)
The Problem: Hiring a plumber who isn't MCS-certified to save a few hundred pounds upfront, only to discover you've forfeited the entire £7,500 BUS grant.
Saving £200-400 on installation by using non-MCS installer = losing £7,500 BUS grant = net loss of £7,100-7,300. One of the most expensive mistakes you can make.
ALWAYS verify MCS certification before hiring installer. MCS number should be visible on quotes. Check MCS database at mcscertified.com. Also requires G3 certification for unvented cylinder work.
Hampshire Case Study: £1,800 Saved by Doing It Right
Client: 4-bedroom house, Andover, family of 5 (2 adults, 3 children)
Original System: Gas boiler + 200L standard cylinder
Initial Quote (Wrong Approach): Heat pump + keep existing 200L cylinder with retrofit kit = £9,500
Our Solution: Heat pump + Heat Geek Super 300L cylinder (6.0m² coil) = £11,200 before grant
With £7,500 BUS Grant: Net cost £3,700
Result After 12 Months:
- Hot water bills: £450/year (gas) → £140/year (heat pump) = £310/year savings
- Never run out of hot water (300L vs 200L + proper coil)
- 6.0m² coil provides 70-minute reheats vs 3+ hours with standard cylinder
- Payback period: 3.5 years (would have been 8+ years with wrong cylinder choice)
By investing £1,700 more upfront (proper cylinder), family saves £180/year extra in efficiency = £4,500 over 25 years.
Frequently Asked Questions
Everything you need to know about heat pump cylinders
Q1What size coil do I need for a heat pump cylinder?
Heat pump cylinders require larger coils than standard cylinders to compensate for lower flow temperatures (35-45°C vs 60-80°C):
- Minimum 4.5m²: Suitable for smaller systems (1-3 people, single bathroom)
- Optimal 5.2m²: Best for most UK heat pumps (3-5 people, 2 bathrooms)
- Maximum 6.0m²: Maximum efficiency for all heat pump types (4+ people, 3+ bathrooms)
Why larger coils? Heat transfer rate = Surface Area × Temperature Difference. With heat pumps operating at half the temperature of gas boilers, you need double the surface area (coil size) to maintain efficient heating.
Q2Can I use my existing cylinder with a heat pump?
No—standard cylinders are fundamentally incompatible with heat pumps:
- • Coil size: 1.5m²-2.5m²
- • Designed for: 60-80°C gas boilers
- • Reheat time with heat pump: 3-4 hours
- • Result: Inadequate hot water, poor efficiency
- • Coil size: 4.5m²-6.0m²
- • Designed for: 35-45°C heat pumps
- • Reheat time: 60-90 minutes
- • Result: Reliable hot water, 60-70% efficiency
Attempting to use a standard cylinder with a heat pump results in lukewarm water, 40-50% efficiency loss, and constant immersion heater use (expensive). Always upgrade to a proper heat pump cylinder (4.5m²+ coil) when installing a heat pump.
Q3How much does a heat pump cylinder cost with the BUS grant?
Heat pump cylinder installation costs £2,200-£4,500 depending on size and complexity. The government BUS grant provides £7,500 towards complete heat pump systems (including cylinder):
| Component | Cost |
|---|---|
| Heat pump cylinder (250L) | £1,200-1,800 |
| Labour + installation | £600-1,200 |
| Materials + G3 notification | £385-500 |
| Total Before Grant | £2,185-3,500 |
| £7,500 BUS Grant (system total) | -£7,500 |
| Net Cylinder Cost After Grant Allocation | £500-2,000 |
*Grant covers complete heat pump system installation (heat pump unit + cylinder + installation). Cylinder component effectively costs £500-2,000 after allocating grant proportion to cylinder upgrade.
Q4What is the best heat pump cylinder brand?
The "best" cylinder depends on your priorities—performance, warranty, or value:
- • Largest coil = fastest reheats
- • Works with ALL heat pump brands
- • Optimal stratification design
- • Best for: 4+ people, 2+ bathrooms
- • 25-year shell warranty
- • UK manufactured (Derby)
- • Perfect for Vaillant heat pumps
- • Best for: 3-5 people, warranty priority
- • £200-400 less than competitors
- • German engineering quality
- • Perfect for Viessmann heat pumps
- • Best for: 2-3 people, budget conscious
Q5How much energy does a heat pump cylinder save?
Heat pump cylinders enable 60-70% energy savings compared to gas boiler systems:
- • Annual savings: £250-350/year
- • Payback period: 5-7 years (3-5 years with BUS grant)
- • 20-year total savings: £5,000-7,000 in energy costs
- • Environmental impact: 60-70% CO₂ reduction vs gas
Q6Do I need G3 certification for heat pump cylinder installation?
Yes—heat pump cylinders are unvented systems requiring G3-certified installers by law:
- G3 Certification: Legal requirement for all unvented cylinder installations (Building Regulations Part G)
- Building Regulations notification: £85 fee, mandatory within 30 days of installation
- MCS Certification: Required for BUS grant eligibility (£7,500 heat pump grant)
- Insurance validity: Home insurance may be void without proper G3 certification
Unvented cylinders operate at mains pressure (up to 3 bar). Incorrect installation can cause explosions, scalding injuries, or property damage. G3-certified installers are trained in safety devices (pressure relief valves, expansion vessels, discharge pipes) and proper commissioning procedures.
Q7What size heat pump cylinder do I need?
Heat pump cylinders should be 50L larger than standard sizing due to longer reheat times:
| Household | Daily Usage | Standard | Heat Pump |
|---|---|---|---|
| 1-2 people | 100-150L | 120-150L | 180-210L |
| 3-4 people | 150-250L | 200-250L | 250-300L ⭐ |
| 4-5 people | 250-350L | 250-300L | 300-400L |
| 6+ people | 350-500L | 350-400L | 450-500L |
- Calculate daily usage (60L per adult + 40L per child + shower/bath usage)
- Add 50L heat pump buffer
- Add 20% safety margin
- Add extra for multiple bathrooms (+20%) or morning rush usage (+30%)
⭐ Most common: 250-300L cylinders cover 70% of UK households
Q8How long does heat pump cylinder installation take?
Professional heat pump cylinder installation takes 1-2 days for complete and proper installation:
- • Remove old cylinder and drain system
- • Install new heat pump cylinder (4.5m²-6.0m² coil)
- • Connect to heat pump system (flow/return, controls)
- • Install safety devices (PRV, expansion vessel, tundish)
- • Connect mains water and distribution pipework
- • Install immersion heater backup
- • Refill and pressure test system
- • Test heat pump integration (35-55°C flow temps)
- • Program legionella cycle (monthly 60°C sterilization)
- • Test all controls and safety devices
- • Submit Building Regulations notification (£85)
- • Customer handover and training
Ready to Upgrade to a Heat Pump Cylinder?
Get expert G3-certified installation with £7,500 BUS grant application support. Serving Hampshire, Wiltshire, and surrounding areas.
Related Hot Water Cylinder Guides
Continue learning about hot water cylinders and heating systems
Complete Hot Water Cylinder Guide UK
Comprehensive guide covering all cylinder types, sizing, costs, and installation. Includes interactive calculators for sizing and cost estimation.
Worcester Bosch Cylinder Replacement
Expert guide to Worcester Bosch compatible cylinders. Greenstore alternatives, Viessmann Vitocell compatibility, and heat pump options.
Immersion Heater Installation Guide
Complete guide to immersion heaters for heat pump cylinders. Backup heating, legionella protection, and professional installation services.
